Introduction to the advantages of Mengling Q series LED rental display

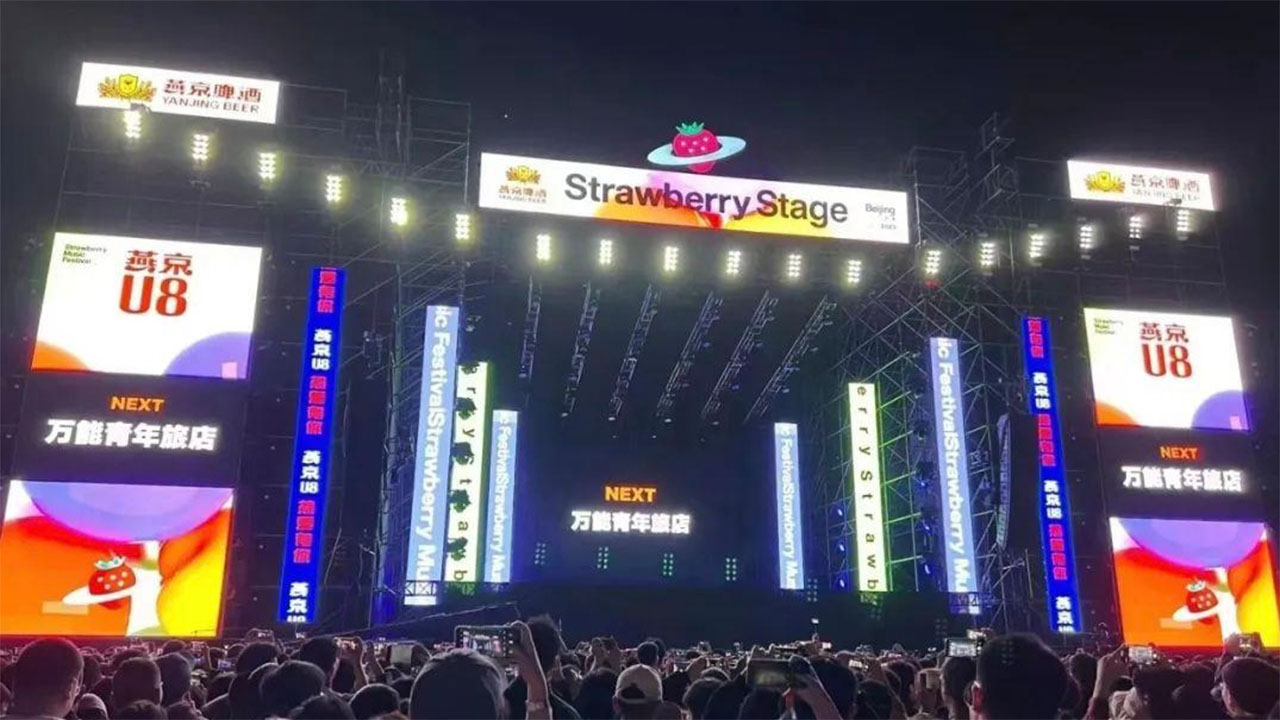

LED rental screen is a special LED screen used for stage performances and cultural activities. Generally appeared by the rental form, so named LED rental screen.

It is widely used in stage rental, song and dance activities, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, performance halls, nightclubs, high-end entertainment discos, etc. Compared with the traditional fixed screen, our company's Q series LED rental screen has the following advantages::

1. Lightweight and ultra-thin

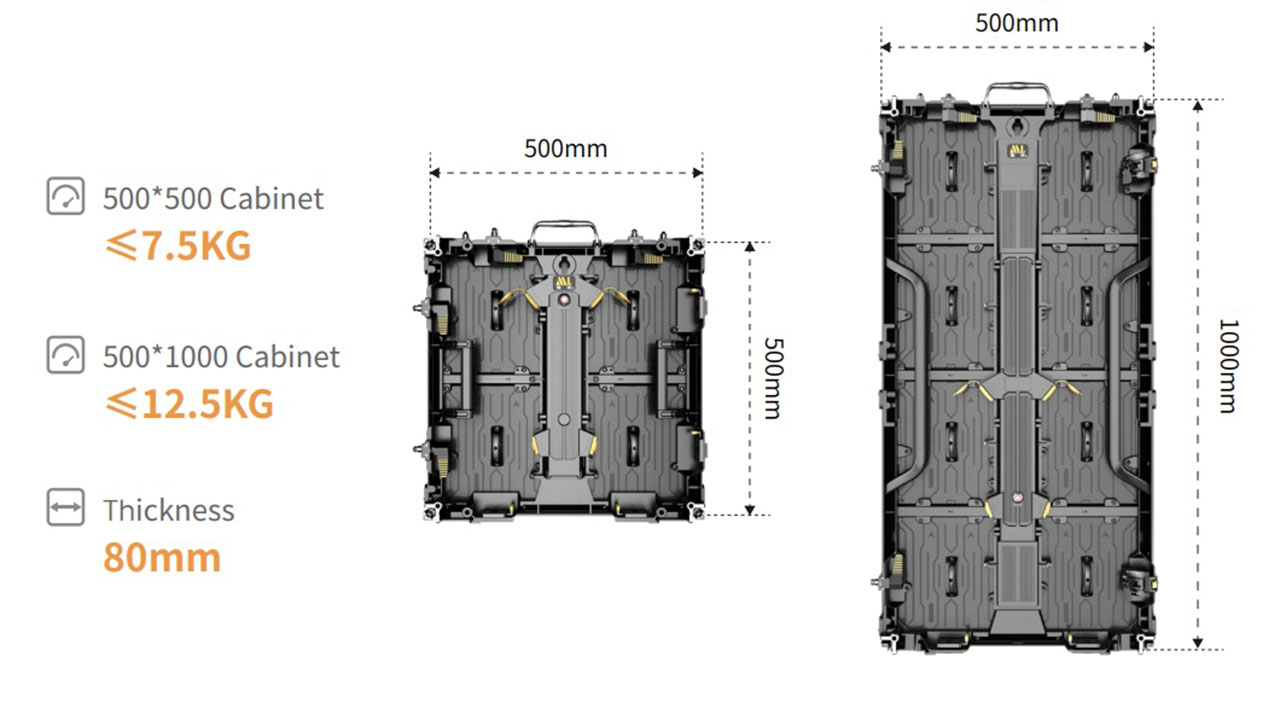

Traditional LED screen cabinet is mainly SPCC (cold-rolled carbon steel plate), commonly known as "iron box", through bending, welding, spraying and other processes to make the sheet into the shape of the cabinet. The cost is relatively low, but its disadvantage is that its cabinet is too heavy, made into a screen after each square weight of 60kg or more, very bulky. The LED rental display cabinet of our company is made of die-cast aluminum, the weight of the 500*500 cabinet is about 7.5kg, and the weight of the 500*1000 cabinet is about 12.5kg, which has the characteristics of light weight and good thermal conductivity.

2. Small error, zero stitching

LED screen traditional cabinet due to the use of sheet metal processing means, iron or aluminum plate through the bending and welding production process forming, d due to such processing process itself is large error, and easy to deform after processing, so the error in the millimeter level, it is difficult to achieve the display on the requirements of zero stitching. LED rental screen aluminum cabinet due to the use of mold composition combined with machining production process, the error can be controlled within one-tenth of a millimeter, can fully meet the requirements of zero stitching.

3. Fast installation

As the cabinet is aluminum structure, lighter weight, higher precision, convenient and fast disassembly, technicians can carry out single cabinet splicing within a few minutes, greatly reducing the installation and disassembly time, saving labor costs.

4. Long life

The main components affecting the life of the LED display for the light-emitting diode (light), the high temperature is the big killer of the light-emitting diode, he good heat and thermal conductivity of the aluminum cabinet makes the ambient temperature of the use more stable, which can greatly extend the life of the screen.

Support signal lines to any direction, to meet different cabinet arrangement, placement, in order to create a different effect of the screen;

Lightweight, ultra-thin, fast installation design, so that you to complete the LED screen installation and dismantling work in a short time;

Equipped with professional video processor, support AV, DP, VGA, DVI, YPBPR, HDMI, SDI and other signals;

Support 256-level of brightness adjustment and white balance customization adjustment, so that different batches of display can be mixed;

Signal processing: RTF series products adopt signal folding technology, the unit module does not need to be cascaded, which greatly improves the product display performance. Adopting signal folding technology, the unit modules do not need to be cascaded, which greatly improves the display performance of the products.

Mask: The patented technology mask, the mask adopts the rear buckle fastening assembly mode, can facilitate the front maintenance of LED lights, the face of the mask cannot see the fastening screws, the screen surface integrity is good, no bright spot caused by screw leakage when the screen is lit;

Module: adopting large module, 500*500 cabinet have 4 modules, 500*1000 cabinet have 8 modules, reducing internal wiring and improving product stability. No need to open the cabinet, can be directly disassembled from the back of the cabinet display module;

Back cover: Remove 4 screws and remove the back cover to maintain and replace the power supply and receiver card;

Heat sink: Apply aluminum bottom plate instead of traditional plastic bottom shell, which improves the heat dissipation performance of the product while ensuring flatness;

IC and driver: high refresh frequency, high grayscale high refresh frequency, high grayscale 16384 level grayscale products using high-end constant current driver chip with built-in PWM. In the case of a single receiver card with load, the display refresh frequency can be as low as 960 HZ, up to 3840 HZ, gray level up to 16bit, smooth picture, can easily meet the stage performance, broadcasting and other high-end application requirements.

Compatible: new structure design, to meet the requirements of hoisting, iterative installation, to meet the indoor and outdoor requirements. Single cabinet, a variety of point distance compatible, indoor and outdoor modules compatible;

High: high brightness and high refresh rate design, brightness 4500nit, refresh rate 3840Hz;

Low: excellent heat dissipation design and heat dissipation performance, no external fan, air conditioners, etc., low noise; The box weight is light, the required installation cost is low; Low power consumption of the box, saving operating costs;

It has good waterproof effect and has IP65 protection level, which is suitable for outdoor rental use; with a variety of specifications of the flight box, which is easy to store and transport the cabinet, and plays a good role in protecting the LED screen.

LED rental screen light weight, thin structure, with hoisting and quick installation function, so as to meet the requirements of the rental occasions require rapid installation, dismantling and handling requirements. Easy to load and unload, easy to operate, the whole screen loading and unloading by fast bolts to fix and connect, can be accurately and quickly set up and dismantle the screen and can be spelled out in different shapes to meet the requirements of the scene. Unique process: Unique welding process optimization of the structural design, to avoid frequent handling of electronic products solder joint contact caused by the failure site and other conditions.
