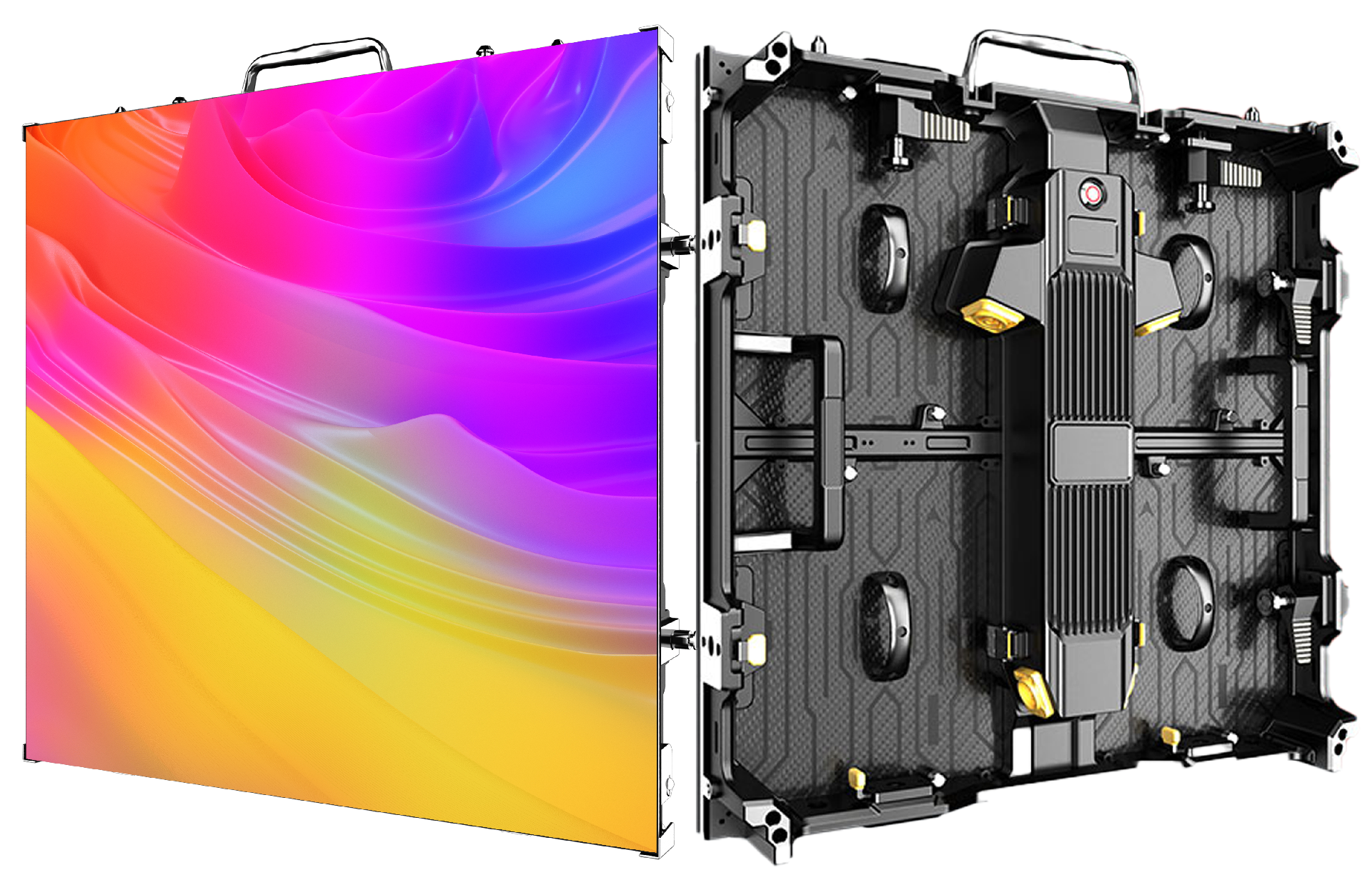

The smallest and smoothest curved rental screens.

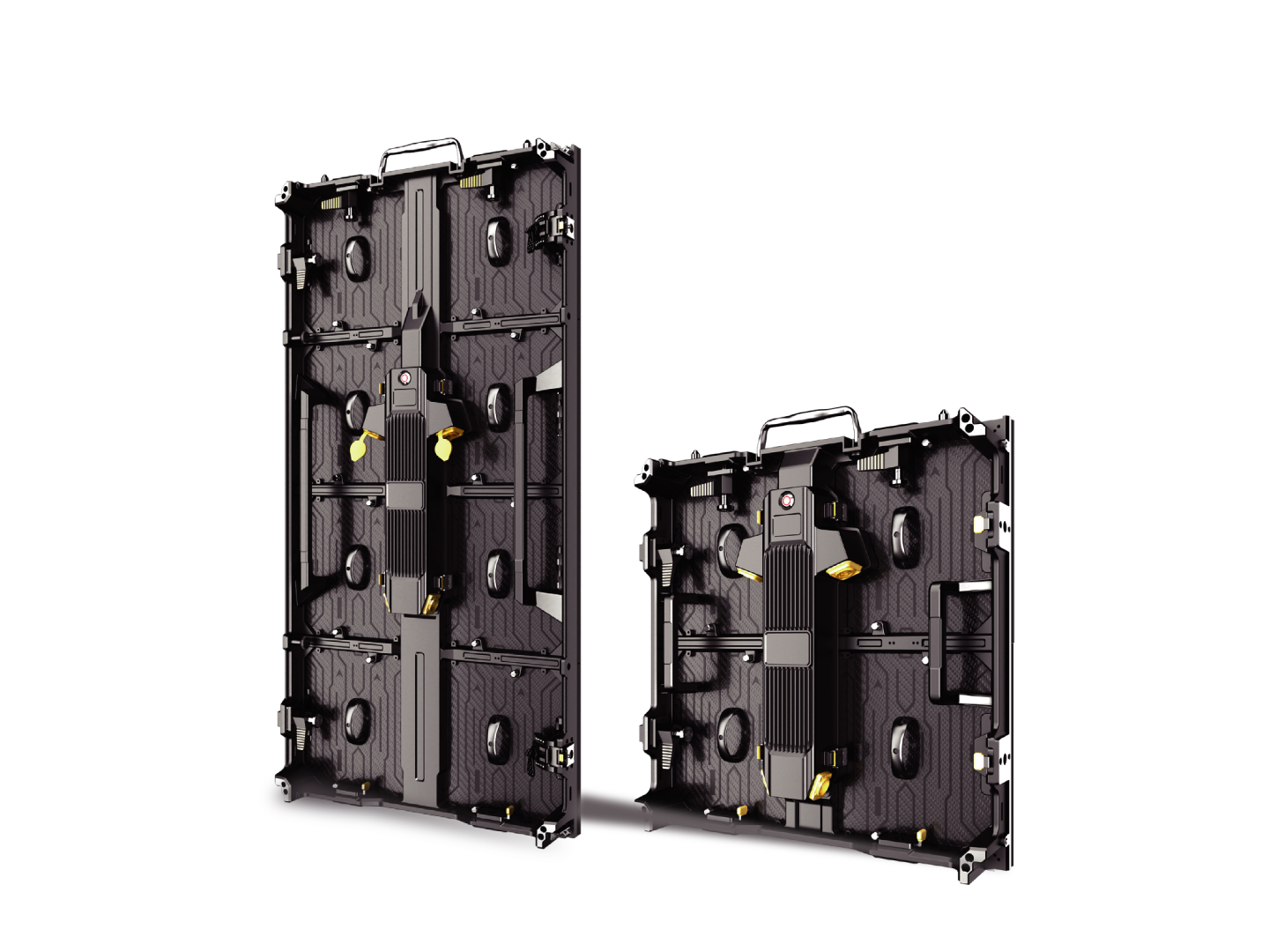

Dual-size design allows for more options to improve installation efficiency and reduce costs.
Lightweight design of the cabinet, more flexible when using, better operation experience.
The whole series is equipped with branded power supply plug interface and quality network cable interface to realize stable transmission of power and signal; Equipped with high quality cables, longer wire life and lower failure rate.
Easy to set up/take down the big screen quickly.

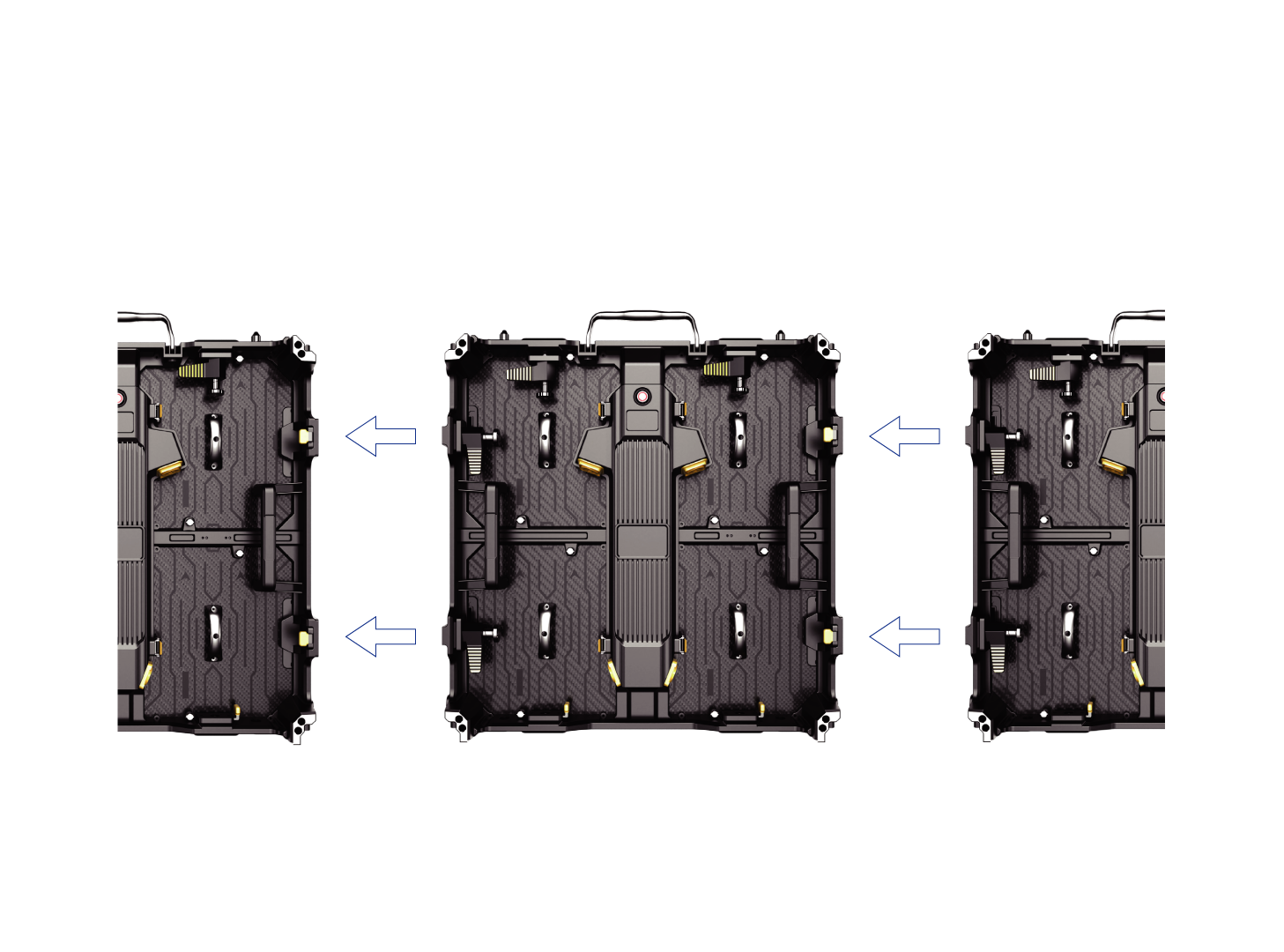

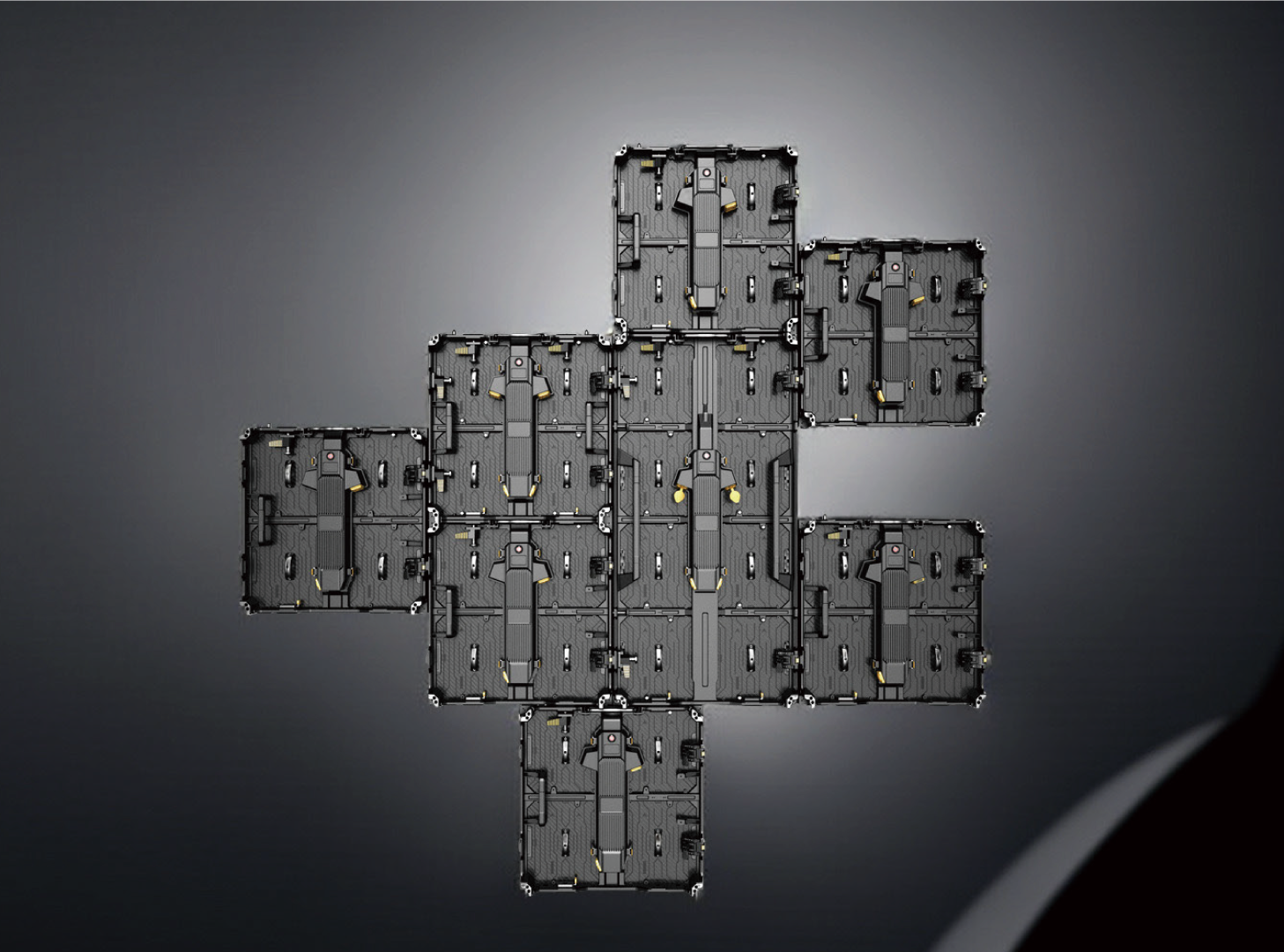

Straight screen version, curved boards support long and short box up and down the inter-pieced displayonvenient for customers to make flexible adiustments according to the stage space.
Adopting platformized design, modules with different pitch can be used on the same box.
Convenient for customers to flexibly adjust the screen dot pitch, further saving costs.

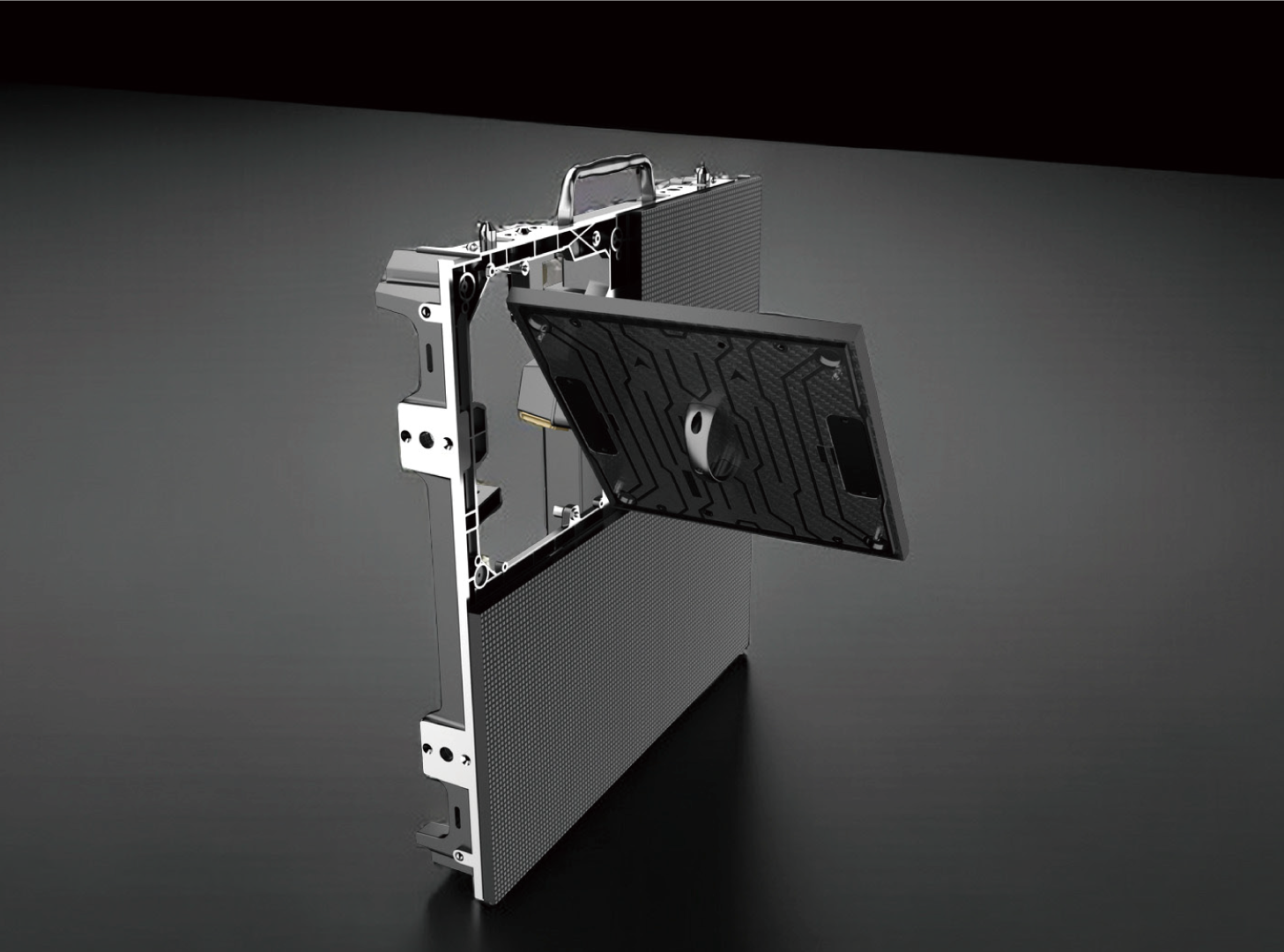

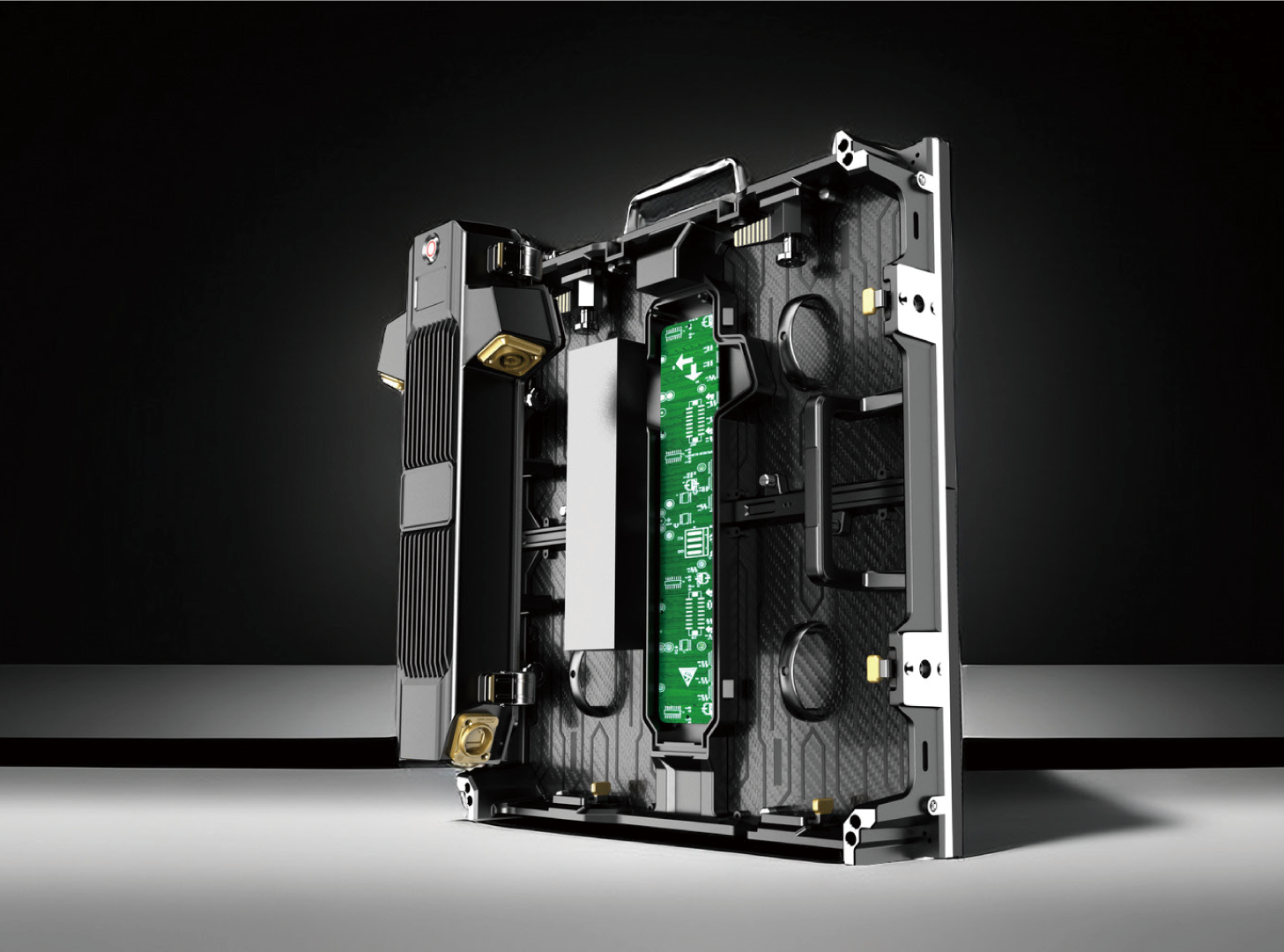

Integrated power box design, including power supply, receiver card, etc., which can be removed by undoing the clasp Module adopts "magnetic suction + screw l ocking" dual-guarantee security design.
Indoor and outdoor rental cabinets. Depth 83 mm.
| Item | K391 500×500 | K391 500×1000 | K291 500×500 | K291 500×1000 | K261 | K191 GOB |
|---|---|---|---|---|---|---|
| Pixel pitch | 3.91 mm | 3.91 mm | 2.976 mm | 2.976 mm | 2.604 mm | 1.953 mm |
| Refresh rate | 7680 Hz | 7680 Hz | 7680 Hz | 7680 Hz | 7680 Hz | 7680 Hz |
| Brightness (max) | 1000 nit | 1000 nit | 1000 nit | 1000 nit | 1000 nit | 1000 nit |
| Cabinet size | 500×500×83 mm | 500×1000×83 mm | 500×500×83 mm | 500×1000×83 mm | 500×500×83 mm | 500×500×83 mm |
| Cabinet weight | 7.8 kg ±0.5 | 13 kg ±0.5 | 7.8 kg ±0.5 | 13 kg ±0.5 | 7.8 kg ±0.5 | 8 kg ±0.5 |
| IP rating | Front IP20 / Rear IP20 | Front IP20 / Rear IP20 | Front IP20 / Rear IP20 | Front IP20 / Rear IP20 | Front IP20 / Rear IP20 | Front IP20 / Rear IP20 |
| Item | K390 500×500 | K390 500×1000 | K290 500×500 | K290 500×1000 |
|---|---|---|---|---|
| Pixel pitch | 3.91 mm | 3.91 mm | 2.976 mm | 2.976 mm |
| Refresh rate | 7680 Hz | 7680 Hz | 7680 Hz | 7680 Hz |
| Brightness (max) | 4500 nit | 4500 nit | 4500 nit | 4500 nit |
| Cabinet size | 500×500×83 mm | 500×1000×83 mm | 500×500×83 mm | 500×1000×83 mm |
| Cabinet weight | 8 kg ±0.5 | 13.5 kg ±0.5 | 8 kg ±0.5 | 13.5 kg ±0.5 |
| IP rating | Front IP65 / Rear IP65 | Front IP65 / Rear IP65 | Front IP65 / Rear IP65 | Front IP65 / Rear IP65 |
