Experience unparalleled portability and exceptional visual prowess.

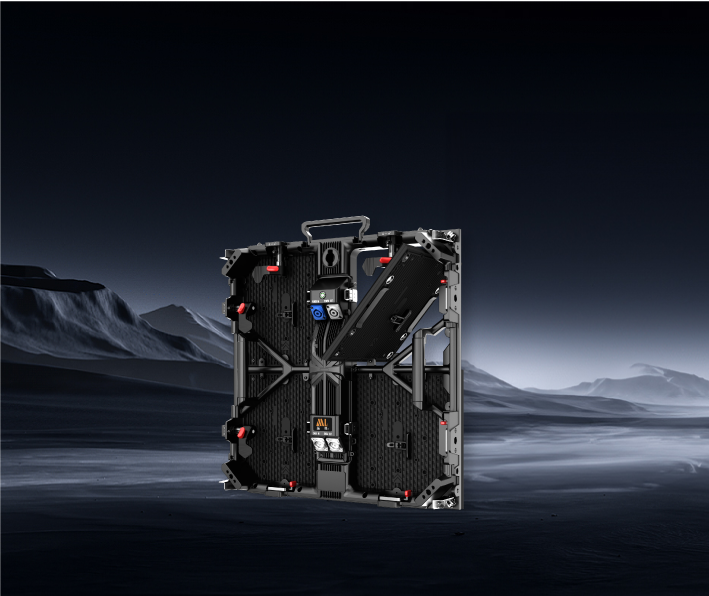

Lightweight design of the cabinet, more flexible when using, better operation experience.
Realistic details and rich colors; Enjoy a better visual experience with 4000nits high brightness and 5000:1 contrast ratio
The platform-based design allows different pitch modules to be used on the same cabinet.
Convenient for customers to flexibly adjust the pitch and save costs

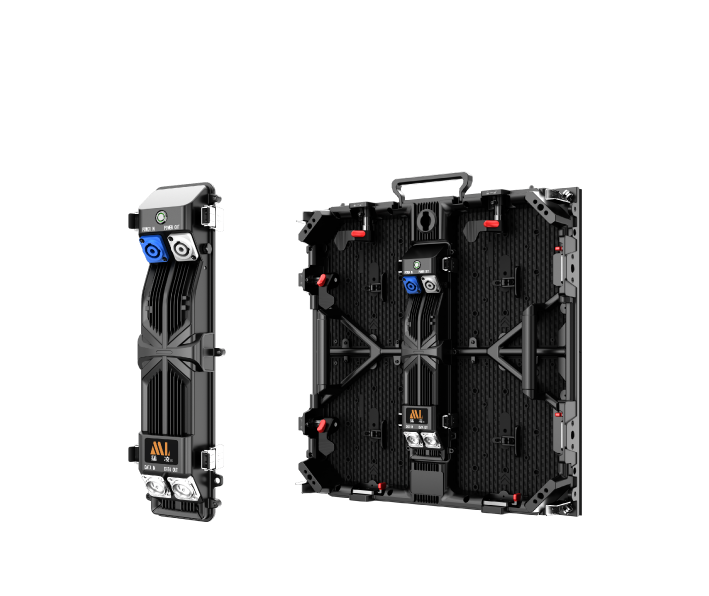

The whole series is equipped with branded power supply plug interface and quality network cable interface to realize stable transmission of power and signal; Equipped with high quality cables, longer wire life and lower failure rate.

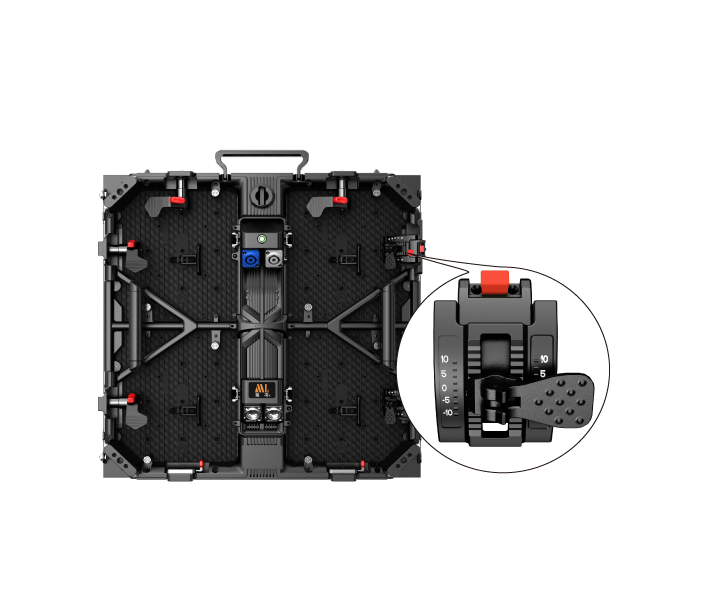

Support customized curve shaped cabinet and curve splicing with multi-angleInclude(-10°,-7.5°,-5°,-2.5°,0°, 2.5°,5°,7.5°,10°)
Rental cabinets. Depth 78 mm.

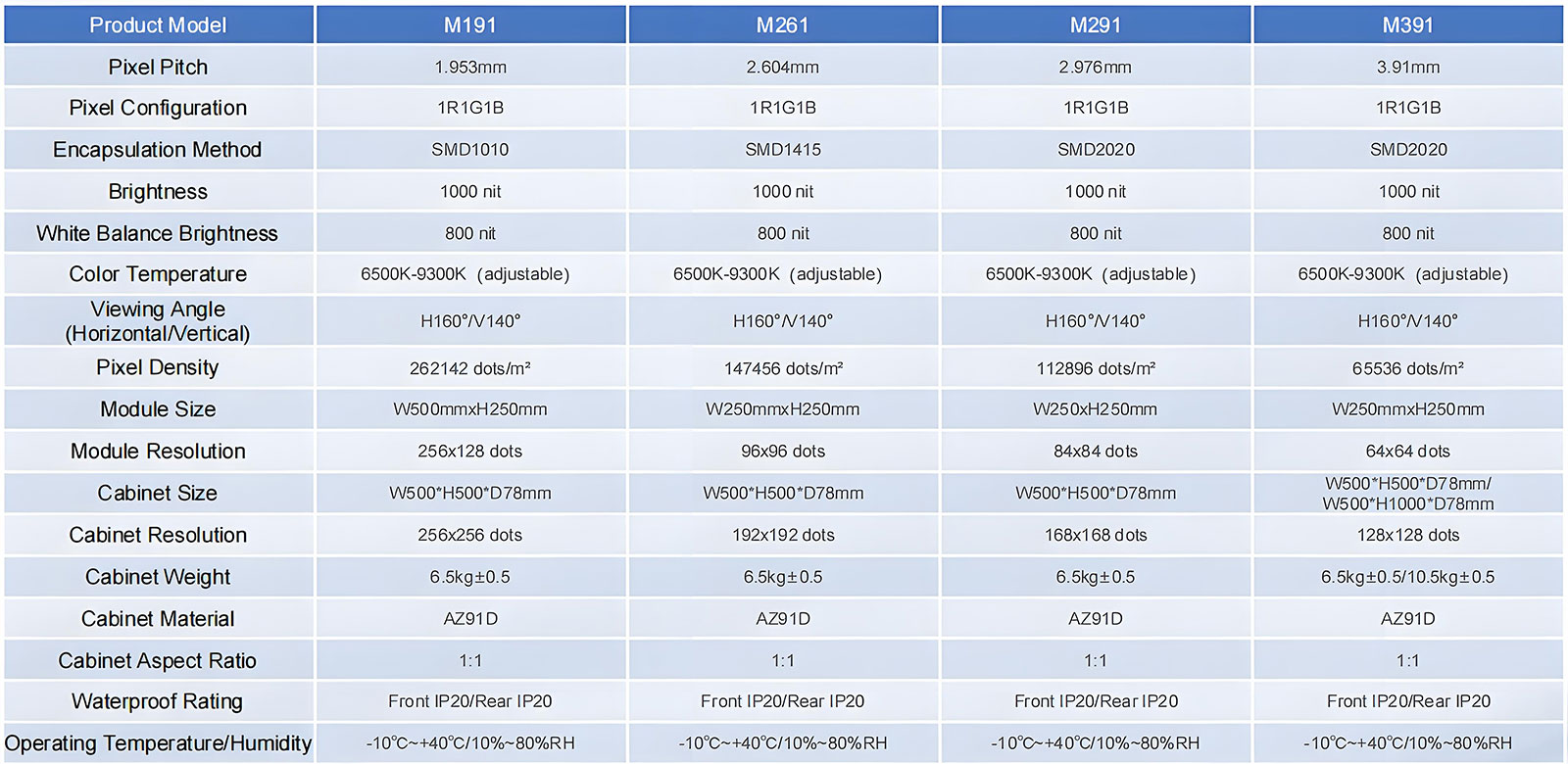

| Item | M191 | M261 | M291 | M391 500×500 | M391 500×1000 |
|---|---|---|---|---|---|
| Pixel pitch | 1.953 mm | 2.604 mm | 2.976 mm | 3.91 mm | 3.91 mm |
| Refresh rate | 3840-7680 Hz | 3840-7680 Hz | 3840-7680 Hz | 3840-7680 Hz | 3840-7680 Hz |
| Brightness (max) | 1000 nit | 1000 nit | 1000 nit | 1000 nit | 1000 nit |
| Cabinet size | 500×500×78 mm | 500×500×78 mm | 500×500×78 mm | 500×500×78 mm | 500×1000×78 mm |
| Cabinet weight | 6.5 kg ±0.5 | 6.5 kg ±0.5 | 6.5 kg ±0.5 | 6.5 kg ±0.5 | 10.5 kg ±0.5 |
| IP rating | Front IP20 / Rear IP20 | Front IP20 / Rear IP20 | Front IP20 / Rear IP20 | Front IP20 / Rear IP20 | Front IP20 / Rear IP20 |
| Item | M290 | M390 500×500 | M390 500×1000 |
|---|---|---|---|
| Pixel pitch | 2.976 mm | 3.91 mm | 3.91 mm |
| Refresh rate | 3840-7680 Hz | 3840-7680 Hz | 3840-7680 Hz |
| Brightness (max) | 4500 nit | 4500 nit | 4500 nit |
| Cabinet size | 500×500×78 mm | 500×500×78 mm | 500×1000×78 mm |
| Cabinet weight | 7.0 kg ±0.5 | 7.0 kg ±0.5 | 11.5 kg ±0.5 |
| IP rating | Front IP65 / Rear IP65 | Front IP65 / Rear IP65 | Front IP65 / Rear IP65 |
