Industry Insights: COB vs. SMD – Choosing the Right LED Technology for Your Vision

Industry Insights: COB vs. SMD – Choosing the Right LED Technology for Your Vision

In the rapidly evolving world of visual display technology, two acronyms dominate the conversation: SMD and COB. While they might look identical from a distance, the "DNA" of these two technologies—their packaging process—defines everything from how long they last to how much they cost.

If you are planning a high-end corporate showroom, a command center, or a large-scale outdoor billboard, understanding these differences is the key to a successful investment.

The "Anatomy" of a Display: How They Are Built

The primary difference lies in how the tiny LED chips are attached to the circuit board (PCB).

• SMD (Surface Mounted Device): Think of this as "pre-packaged" light. Each RGB chip is first encased in a tiny plastic housing with a bracket and protective glue to form an independent "lamp bead." These beads are then soldered onto the PCB.

• COB (Chip-on-Board): This is a "integrated" approach. Bare LED chips are bonded directly onto the PCB. Once positioned, the entire module surface is sealed with a specialized resin. There are no individual lamp beads—the entire module becomes a single, seamless light-emitting surface.

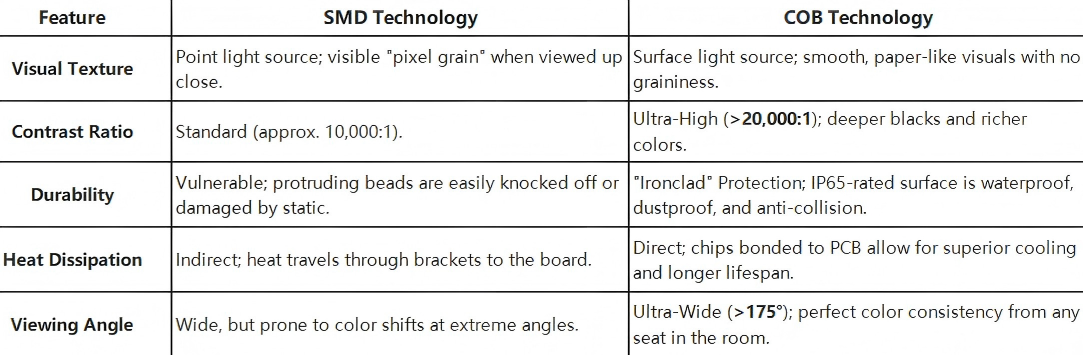

Performance Face-Off: Which One Wins?

Real-World Scenarios: Making the Choice

To help visualize the impact, let's look at two common client requests:

Scenario A: The "Big Impact" Retail Billboard

The Goal: A vibrant, large-scale screen for a shopping mall facade.The Choice: SMD. When your audience is 10+ meters away, the pixel grain of SMD is invisible. SMD remains the "gold standard" for cost-effectiveness and ease of maintenance. If a single lamp bead fails due to a stray pebble, a technician can often swap it out on-site within minutes.

Scenario B: The "Mission Critical" Command Center

The Goal: A 7×24 ultra-high-definition wall for data monitoring or medical consultation.The Choice: COB. When experts are sitting 2 meters away from a screen for 8 hours a day, visual fatigue is a major factor. COB’s surface light source is much "softer" on the eyes. Furthermore, in a high-traffic command center, the anti-collision surface of COB protects the screen from accidental bumps, ensuring the system never goes dark.

Summary: Which is Right for You?

• Choose SMD if: You are looking for a proven, cost-effective solution for outdoor advertising, standard indoor displays, or projects where the budget is the primary driver.

• Choose COB if: You are investing in Fine Pitch (P1.25 or below), high-end meeting rooms, broadcast studios, or any environment where "zero-failure" reliability and ultimate visual comfort are non-negotiable.

The Bottom Line: While COB currently carries a 30%–50% price premium due to its complex manufacturing, its long-term stability and superior optics make it the future of high-definition displays. SMD, meanwhile, remains the reliable workhorse of the global LED industry.
